Tutorial - Recording Computer Playback on Windows

On Windows, sound devices often lack a "Stereo Mix" or similar input, or it must be specially enabled in the Windows "Sound" Control Panel.

You can also choose Windows WASAPI host and the (loopback) input choice in Device Toolbar. This will record computer playback even if the computer sound device lacks its own input to do this.

Copyright or website restrictions may prevent you recording or distributing material. Check first. When recording computer playback, ensure the menu item Transport > Transport Options > Enable audible input monitoring is off. If the item has a checkmark, click it to turn off playthrough. Otherwise you will hear and record echoes or distorted sound.

Audio Setup

Click on the Audio Setup button in the the top tooldock and click on {{menu|Audio Settings]]. For details please see Audio Setup Toolbar.

Instead of using the Audio Setup button you can use Audio Settings Preferences if you prefer.

Choose your preferred Audio Host, Recording Device and Playback Device from the dropdown menus.

This selects the particular interface with which Audacity communicates with your chosen recording and playback devices.

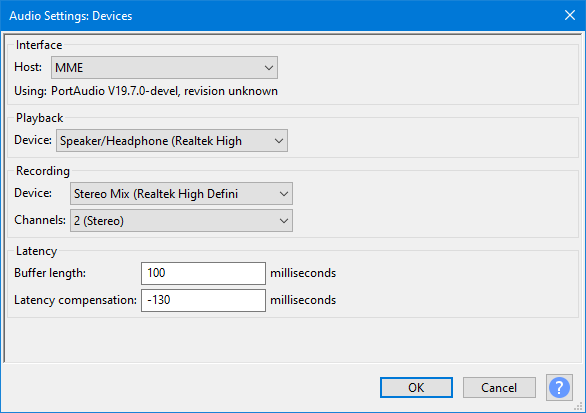

• Choose "MME" or "Windows DirectSound" in the Host box.
• In the Recording Device box, look if there is an input meant for recording computer playback. This input could be called "Stereo Mix", "Wave Out", "Sum", "What U Hear", "Loopback" or other names, depending on your sound device.

If you do not see Stereo Mix or similar:

• Make sure you have the latest correct audio drivers meant for your version of Windows
• Go to the Windows Control Panel to see if stereo mix can be enabled
• Alternatively, choose the Windows WASAPI loopback recording method instead.

You must play the audio you want to record using the same sound device that has the "Stereo Mix" or similar input. You cannot play audio through an HDMI output or through a headset, headphones or speakers that connect via USB or wirelessly then record that playback using the stereo mix input of the built-in sound device.

Choose the Windows WASAPI host (next section) if you want to record playback of a USB, wireless or external sound device.

Windows WASAPI loopback recording

This is the recommended method of recording audio playing on the computer on Windows with Audacity.

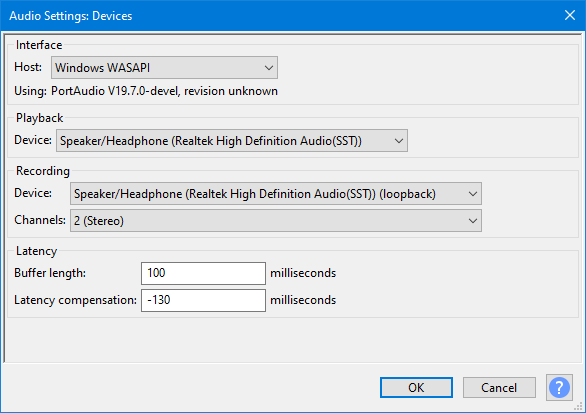

On Windows, you can choose the Windows WASAPI  Audio Host and then the (loopback) input in the Recording Device box. Choose the loopback input for the computer playback device you will be listening to (for example, "Speakers (loopback)". The loopback input records computer playback even if your sound device lacks its own stereo mix or similar input.

WASAPI loopback has a big advantage over stereo mix or similar inputs provided by the audio interface. The capture is entirely digital (rather than converting to analog for playback, then back to digital when Audacity receives it).

Windows WASAPI host only records loopback when there is an active signal present. When there is no active signal, recording pauses and will restart once an active signal resumes.

Playback and Recording sliders when using WASAPI

The behavior of the Audacity playback and recording sliders may vary according to the sound device you are recording from.

• On many devices, the Audacity recording volume and playback volume sliders will be "linked" so that both sliders move when you move either slider, and either slider will affect the level of the audio that you hear. This will often happen if in Audacity you set the (loopback) recording device to the same built-in device as the one selected for playback.
• When the Audacity recording and playback sliders are linked, adjusting either slider will often not affect the level already being recorded. This means that if you do not want to hear what you are recording, you can simply turn down either Audacity volume slider. However on some devices, turning down either slider may turn down or silence the achieved recording level. If this happens then to make a recording without hearing it, you can try the following:
  • Click the speaker by the system clock, click the "Mixer" link, then mute the "Device" slider at far left of the "Volume Mixer" window
  • Plug in external speakers or headphones and turn those down
  • Plug in any 1/8 inch (3.5 mm) minijack plug with no lead attached.

Tips for WASAPI loopback recording: You will normally need to start playing the stream (or to have previously played some other audio in the application you are using for playback) before pressing Record in Audacity. WASAPI loopback may not be able to record in mono on all devices. If mono recording produces an error, change Device Toolbar to "2 (Stereo) Recording Channels". You can convert a stereo recording to mono using Tracks > Mix > Stereo Down to Mono. System sounds playing through the device selected for WASAPI loopback are still captured, so you may wish to turn those off.

If you do not see any input for recording computer playback, exit Audacity and continue reading below.

Windows Control Panel for sounds

Windows, computers almost always only have microphone inputs enabled by default. Earlier Windows systems may also need the input for recording computer playback to be made visible before Audacity can use it. To show or enable inputs, launch the sound device control panel from the Windows Control Panel or from the system tray (by the clock).

1. Right-click over the Speaker icon by the system clock then choose Sounds the click on the Recording tab.
2. Right-click anywhere inside the empty, white, space and choose "Show disabled devices" then right-click again and choose "Show Disconnected Devices".
3. Right-click specifically over the input device you want to record with (in this case "Stereo Mix" or whatever alternative you have), and if visible, choose "Enable".
4. Sometimes it helps to right-click over the "stereo mix" or similar device again and choose "Set as Default Device".

For a more detailed walk-through of the above steps for Windows (or if that does not work for your version of Windows), see Windows: accessing the Windows Sound controls.

RealTek and other audio interface control panels

If you still have no stereo mix input in Windows, sometimes this input can be enabled in the audio interface's own control panel, especially with older RealTek devices. The audio interface's own control panel can be found in the Windows Control Panel.

Hints for RealTek control panels:

• Some panels "select" an input by muting all but one, so in this case, mute everything except Stereo Mix
• If you do not see Stereo Mix, click the wrench or spanner icon and enable Stereo Mix in the dialog that appears
• In some panels the option to choose is "Enabled recording multi-streaming"
• You should now see a volume control for Stereo Mix; make sure it is selected or unmuted.

Updating sound device drivers

If there is still no suitable input, try updating the sound device drivers for your audio interface. This can sometimes produce an additional input for recording computer playback, and may fix other problems such as poor quality or skipping.

Loopback cable

An alternative method of recording audio playing on the computer is to buy a cable with 1/8 inch (3.5 mm) stereo connectors at each end. Suitable cables are available from almost any audio retailer. Connect one end of the cable to the computer's audio output (green) and the other end to the line-in input (blue). Then choose the line-in as input device in Audacity.

Connecting to the microphone input (red) may produce mono sound or poor quality.

To hear what is playing while you record it, buy a single stereo to double stereo adaptor to plug into the audio output. This gives you a spare jack to plug the speakers or headphones into.

Alternative applications for recording computer playback

You can use other applications to record computer playback that do not rely on the computer sound device having this ability. These applications will make an audio file which can then be imported into Audacity for editing.

All the options below grab the audio digitally from the application producing the sound. This has advantages over stereo mix recording. Lossy digital-analog-digital conversions are avoided and also unwanted system beeps and alerts are not captured.

• SoundLeech is a free application for Windows which runs from the system tray. It records to lossless WAV format only.
• VB-Audio Virtual Cable is a donation-ware application for Windows. You can set the Cable Input as default playback device then set Audacity to record from the Cable Output.
• TotalRecorder is a low cost recording package. Internet streams can optionally be captured at faster than real-time rates (monitoring is not available in that mode).

External audio interfaces

A further alternative is an external USB audio interface with a "Stereo Mix" type of option.

Not all USB audio interfaces offer a Stereo Mix option, so read the specifications carefully before purchasing.
