Spectral Edit Parametric EQ

From Audacity Development Manual
Jump to: navigation, search
The Spectral Edit Parametric EQ tool is used with a Spectral Selection to apply either a band boost filter, or band-cut filter to the selection.
Advice Note carefully that when you apply an effect to a time-stretched clip the changed speed of the clip will be automatically rendered.
  • If you apply an effect to a selection within a time-stretched clip then Audacity will split the original clip so that the selection can be rendered as part of applying the effect.

Accessed by: Effect > Spectral Tools > Spectral Edit Parametric EQ

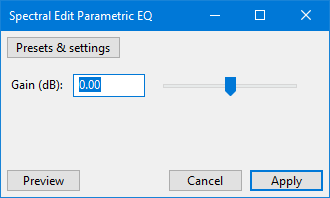

Spectral Edit Parametric EQ 3-2-0.png

Depending on how the track is displayed and what spectral selection has been made, this effect will do one of the following:

  • When the track is not in Spectrogram View with Spectral Selection enabled, an error message will be displayed
  • When the spectral selection has a center, upper and lower frequency this effect performs a band cut or band boost according to the value entered in the "Gain (dB)" control. The center frequency is defined by the center frequency of the spectral selection and the bandwidth is defined by the upper and lower frequencies of the spectral selection.
  • When either the upper or lower frequency boundary is undefined, an error message will be displayed to that effect. If the lower frequency boundary is 0 Hz there is no center frequency or bandwidth and an error message will state that the lower frequency must be above 0 Hz.
Advice Due to a limitation in Nyquist effects, the effect dialog will be displayed before any error message.


Band Cut

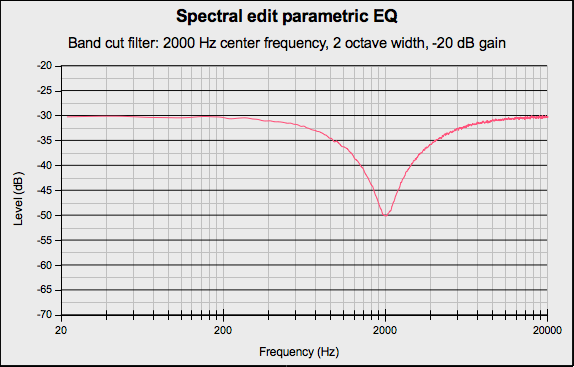

In the following example the spectral selection had a center frequency of 2,000 Hz and a bandwidth of 2 octaves. In the Spectral Edit Parametric EQ dialog, the Gain was set to -20 dB.


Band Boost

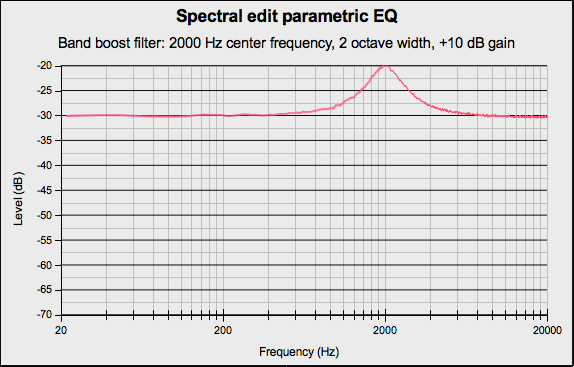

In the following example the spectral selection had a center frequency of 2,000 Hz and a bandwidth of 2 octaves. In the Spectral Edit Parametric EQ dialog, the Gain was set to +10 dB.
