Spectral Selection and Editing

Spectral Selection is used to make selections that include a frequency range as well as a time range on tracks in Spectrogram view. Spectral Selection is used with special spectral editing effects to make changes to the frequency content of the selected audio.

Among other purposes, spectral selection and editing can be used for cleaning up unwanted sound, enhancing certain resonances, changing the quality of a voice or removing mouth sounds from voice work.

All of the time-based selection techniques (horizontal selection) are still available when making a spectral selection, enabling you define the time rage of a spectral selection.

All other effects, as well as all the time-based editing commands (such as Cut, Copy, Delete or Trim) are available when there is a spectral selection but those effects and commands will not take into account the frequency range of the spectral selection.

Note: The images on this page show spectrograms in the non-default "Classic" Scheme colorway and with the non-default range of 8kHz.

Spectral Selection and editing is only ideal for removing a single constant frequency with few harmonics, such as removing 50Hz mains hum. We do not have good instructions for using it for anything else.

You will not get far trying to remove, say, traffic noise, or the sound of a mobile phone ringing.

Making a Spectral Selection

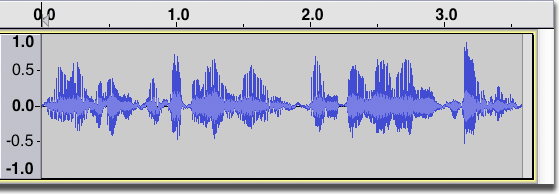

Here is a track with a few seconds of speech shown in waveform view:

To define a frequency and time range change the track to Spectrogram view, click and hold the mouse button at a vertical position that you want to be the upper or lower frequency boundary to be.

Drag vertically (with or without continuing to drag horizontally) to define the bandwidth (range of frequencies) to be acted on. A "box" containing a combined frequency and time range is now drawn in a colored tint as shown below (the exact color of the tint will depend on the version of Audacity and the settings of your monitor):

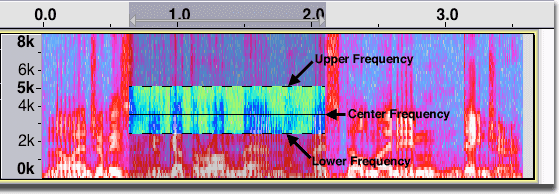

In this example, the spectral selection is the green box

The center frequency is proportionally in the center and is a geometric mean (which is appropriate for filtering purposes) rather than an arithmetic mean. Thus if as in the above image the Spectrogram scale is set to the default "Linear" choice (using Spectrograms Preferences or the track's Spectrogram Settings in the Audio Track Dropdown Menu), the center line will appear below the visual center of the frequency range. The center line will be visually centered in Logarithmic scale.

If either the low or high frequency limits are not defined, no center frequency will be shown. In the illustration below, the selection has been dragged from about 5,000 Hz to the bottom of the track. The high frequency selection is about 5,000 Hz and the low frequency selection is not defined, so the selection includes everything below 5,000 Hz:

Spectral selection from 0 Hz to 5 kHz

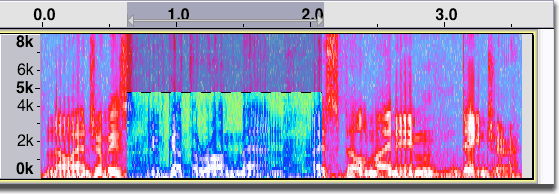

If, instead, the selection is dragged up to the top of the track, then the high frequency will be undefined, so the selection will include everything above the low frequency limit.

If neither the upper or lower frequency limits are defined, then the full frequency range is selected, just like a 'normal' audio selection.

Adjusting a Spectral Selection

When you hover the mouse pointer over the center frequency line it changes to a double triangle to show that the center frequency can be dragged. When you click and drag to move the center frequency and the current frequency range to a new position, the center frequency will snap to frequency peaks. To move the center frequency smoothly (without snapping to frequency peaks) hold down the Shift key then left click and drag.

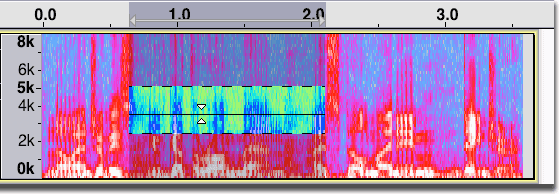

Dragging the spectral selection by the center frequency

The bandwidth in octaves around the center frequency is preserved when dragging the center frequency. Therefore in Spectrogram view the frequency range will expand when dragging the center frequency to higher frequencies and will contract when dragging to lower frequencies, but in Spectrogram Logarithmic view the vertical height of the frequency/time box will remain constant.

To adjust the bandwidth of the selection hover the mouse over the upper or lower boundary until the pointer changes to a double triangle then left click and drag. This moves the upper and lower frequency boundaries so they remain equally spaced around the center frequency (thus not changing the center frequency).

Dragging the spectral selection by the upper frequency

To adjust the upper or lower boundary while holding the opposite boundary constant hold down the Shift key then hover the mouse near the upper or lower boundary until the pointer changes to a single triangle then click and drag (this will change the center frequency).

Dragging the spectral selection by the upper frequency while maintaining the lower frequency

Tips:

When the lower boundary is at 0 Hz you can drag that boundary up by carefully hovering the mouse near the bottom of the track until the single down-arrow pointer appears then left clicking and dragging up.
When the upper boundary is at the Nyquist frequency of the track you can drag that boundary down by carefully hovering the mouse near the top of the track until the single up-arrow pointer appears then left clicking and dragging down.
You can use the Spectral Selection Toolbar to create and/or precisely adjust a spectral selection.

Storing the frequency range in a Label

If you add a label at a time region, that region's Low Frequency and High Frequency are stored in the label and are recalled when you select the label. Similarly if you add a label at the cursor position, the frequency at which you clicked to set the cursor is stored in the label.

If you subsequently want to change the Low Frequency and High Frequency stored by the label, select and right-click the label (or use the Menu key) then choose "Edit" to open the label in Label Editor.

Toggling Spectral Selection on and off

Press the shortcut Q key to change from the last selected spectral selection (one that has at least the lower or upper boundary defined) to one where the lower boundary is 0 Hz and the upper boundary is the Nyquist frequency of the track. In this case there is no longer a spectral selection (all frequencies are selected which is the same as making a time selection in waveform view). Press the Q key again to restore the previous upper and lower boundaries. This command works whether in a Spectrogram view or not.

Alternatively you can turn "on" or "off" the Enable Spectral Selection checkbox in either:

Spectrograms Preferences, or
Spectrogram Settings for an audio track, accessed by opening the dropdown menu in its Track Control Panel then choosing Spectrogram Settings (if "Spectrogram Settings" is grayed out, select "Spectrogram" then reopen the menu).
- Note: this latter choice will only turn on Spectral Selection for that particular track while the project window is open.

Limitations

The permitted upper frequency of the spectral selection is determined by the Project Sample Rate and not by the track sample rate. Therefore if a project includes a track that has a lower sample rate than the Project Sample Rate, Spectral Selection Toolbar could display an "illegal" frequency selection above the Nyquist frequency for the track at the lower Project Sample Rate. Audacity will disregard this "illegal" selection when running Spectral edit effects.

Spectral editing

To make use of the frequency range defined in a spectral selection you must currently use one of the specific spectral effects (detailed below) whose name begins with "Spectral edit".

All other effects, as well as all the time-based editing commands (such as Cut, Copy, Delete or Trim) are available when there is a spectral selection but those effects and commands will not take into account the frequency range of the spectral selection.

Spectral deletion

The Spectral Delete effect can be used acting on a spectral selection to delete

This effect acts on a spectral selection to delete that spectral selection from the audio.

Spectral Delete - deletion with toolbar.png

A spectral selection, shown in Multi-view, after applying Spectral Delete, deleting the frequencies from 5 kHz to 7 kHz

For this we have used a higher than default "Window Size" of 4096 in the spectrogram settings, because that shows the accuracy of the frequency cut much better.

The Spectral Selection Toolbar has been enabled and floated to aid and show the accurate selection range.

For further details please see: Spectral Delete

Spectral edit multi tool

Use this to greatly attenuate or remove part of the frequency range in the spectral selection, for example to repair damaged audio. Depending on how the track is displayed and what spectral selection has been made, this effect will do one of the following:

When the track is not in Spectrogram view with Spectral Selection enabled, an error message will be displayed.
When the spectral selection has a center frequency and an upper and lower boundary this effect performs as a notch filter with the center frequency defined by the center frequency of the spectral selection and the width defined by the upper and lower boundaries of the spectral selection.
When the lower frequency bound of the spectral selection is undefined, this effect performs a high pass filter with a roll-off of 12 dB/octave and with the cutoff frequency defined by the upper boundary of the spectral selection. Note that setting the lower frequency bound to 0 Hz will not apply the filter because 0 Hz is zero, not nil (undefined).
When the upper frequency bound of the spectral selection is undefined, this effect performs a low pass filter with a roll-off of 12 dB/octave and with the cutoff frequency defined by the lower boundary of the spectral selection.
When both the upper and lower frequency bound of the spectral selection are undefined, an error message will be displayed. You should go back and define one or both frequency bounds.

If the attenuation is not sufficient, you can use Ctrl + R to repeat the effect - (on Mac use: ⌘ + R).

You can see some specific examples of this effect on the Spectral edit multi tool page.

Spectral edit parametric EQ

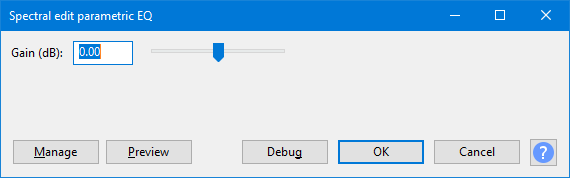

Use this like an equalizer to modify the tone quality, boosting or reducing the amplitude of the selected frequency band using the Gain control. As with an equalizer, frequencies outside the selected band may be boosted or reduced, but less so than those within the frequency band.

Depending on how the track is displayed and what spectral selection has been made, this effect will do one of the following:

When the track is not in Spectrogram view with Spectral Selection enabled, an error message will be displayed.
When the spectral selection has a center frequency and an upper and lower boundary this effect performs a band cut or band boost according to the value entered in the "Gain (dB)" control. The center frequency is defined by the center frequency of the spectral selection, the bandwidth is defined by the upper and lower boundaries of the spectral selection.
When either the upper or lower frequency boundary is undefined, an error message will be displayed to that effect. If the lower frequency boundary is 0 Hz there is no center frequency or bandwidth and an error message will state that the lower frequency must be above 0 Hz.

You can see some specific examples of this effect on the Spectral edit parametric EQ page.

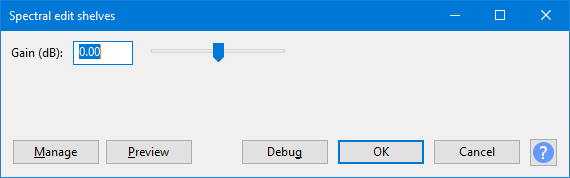

Spectral edit shelves

A shelf filter curve is flat at both ends rather than flat only at the frequencies being passed. Use these filters when you do not want to reduce the lowest bass or highest treble frequencies in the spectral selection as much as you would with a standard high pass or low pass filter, or if you actually want to boost either the low or high frequencies respectively.

Depending on how the track is displayed and what spectral selection has been made, this effect will do one of the following:

When the track is not in Spectrogram view with Spectral Selection enabled, an error message will be displayed.
When the spectral selection begins at 0 Hz or its lower bound is undefined, this effect applies a low frequency shelving filter with the half-gain frequency (the mid-point of the gain section of the curve) defined by the upper boundary of the spectral selection. The gain control sets the amount of low-frequency boost or cut. This is similar to adjusting the bass control on a stereo.
When the spectral selection ends at the Nyquist frequency of the track or its upper bound is undefined, this effect applies a high frequency shelving filter with the half-gain frequency defined by the lower frequency of the spectral selection. The gain control sets the amount of high-frequency boost or cut. This is similar to adjusting the treble control on a stereo.
When the spectral selection has a center frequency and upper and lower frequency boundaries this effect applies both low- and high-frequency shelving filters. In this case the half-gain frequency of the low shelving filter is defined by the lower frequency boundary of the spectral selection and the half-gain frequency of the high shelving filter is defined by the upper frequency boundary of the spectral selection. The gain control sets the amount of boost or cut between the two frequency boundaries.
When the spectral selection begins at 0 Hz and ends at the Nyquist frequency, applying the effect will not change the audio. If the start and end of the selection are both undefined, an error message will be displayed. You should go back and define one or both frequency bounds.

You can see some specific examples of this effect on the Spectral edit shelves page.

Due to a limitation in Nyquist effects the effect dialog will be displayed before any error message.

Example of using spectral editing to remove an unwanted whistle noise

For this example the window size was set to 2048 in Spectrograms Preferences. This gives finer frequency resolution. See Spectrogram View for more details.

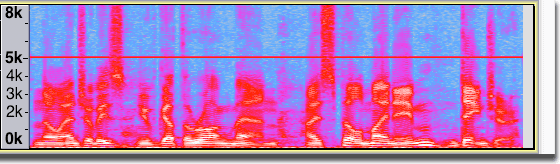

Here is the same audio as in the images above, but this time contaminated by an annoying high-frequency whistle. You can see the whistle just above 5 kHz.

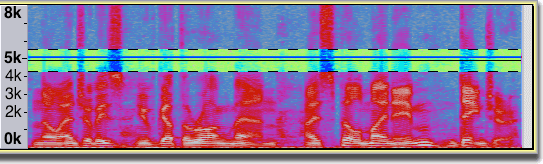

Start by making a rough selection around the whistle:

Click and drag on the vertical scale to zoom in on the offending frequencies:

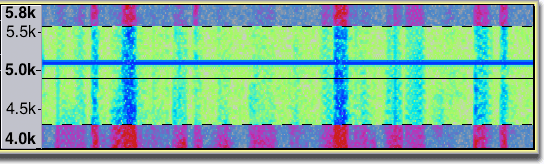

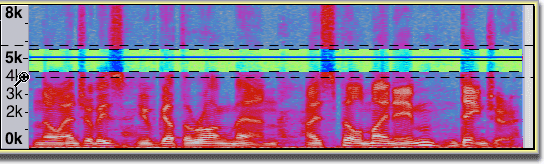

The center frequency line is close (but not exactly on) the whistle and the range of frequencies extends too far above and below the whistle:

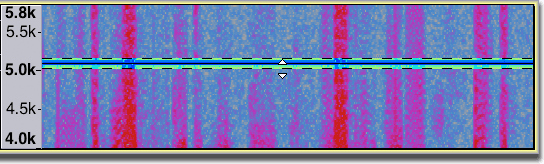

Snap the center frequency line to the whistle by hovering the mouse over the center line until the double triangle cursor appears, then click and drag to snap the center line to the whistle frequency:

Hover the mouse over the upper or lower boundary until the double-triangle cursor appears, then click and drag to adjust the bandwidth of the selection to just cover the whistle:

Finally, select Effect > Spectral edit multi-tool which performs a notch filter effect on the selected frequencies.

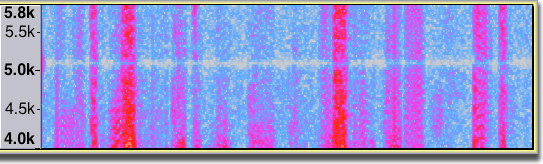

The whistle is gone.
